Plug and Play. Easily Synced. Shine in Harmony

ARGB SYNC simplifies your lighting setup. A single cable allows your GPU lighting to be fully synchronized by the motherboard or other ARGB devices. Just plug it in and enjoy seamless lighting consistency.

FEATURE ARGB SYNC ONE TWO SYNC ARGB SYNC EVO
Compatible GPUs RTX 30 Series RTX 40 Series RTX 50 Series
Software Required ThunderMaster App X X
Cable Type Palit Custom Sync Cable Palit Custom Sync Cable Universal 5V ARGB Connector
Plug & Play Support X (Software needed) V V

Installation Guide

STEP-01

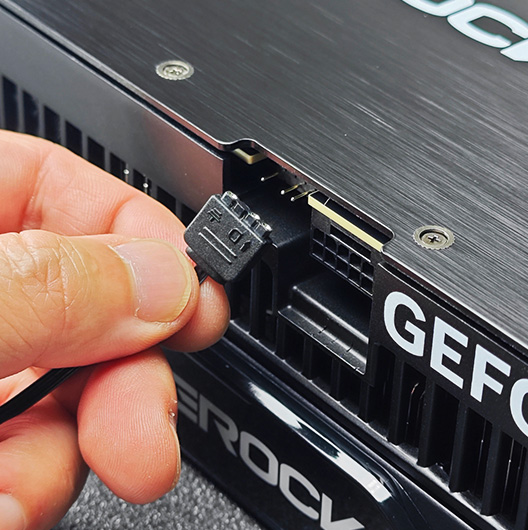

Effortlessly sync your lighting via the universal 5V ARGB connector. Simply connect to other devices using a standard 5V ARGB cable for instant, automatic hardware-level synchronization, no software required. Plug in and let your system glow in perfect harmony.

This ARGB strip supports 5V only. Please follow below steps for installation.If any help needed, please contact our technical support team: support@palit.com

This ARGB strip supports 5V only. Please follow below steps for installation.If any help needed, please contact our technical support team: support@palit.com

STEP-01

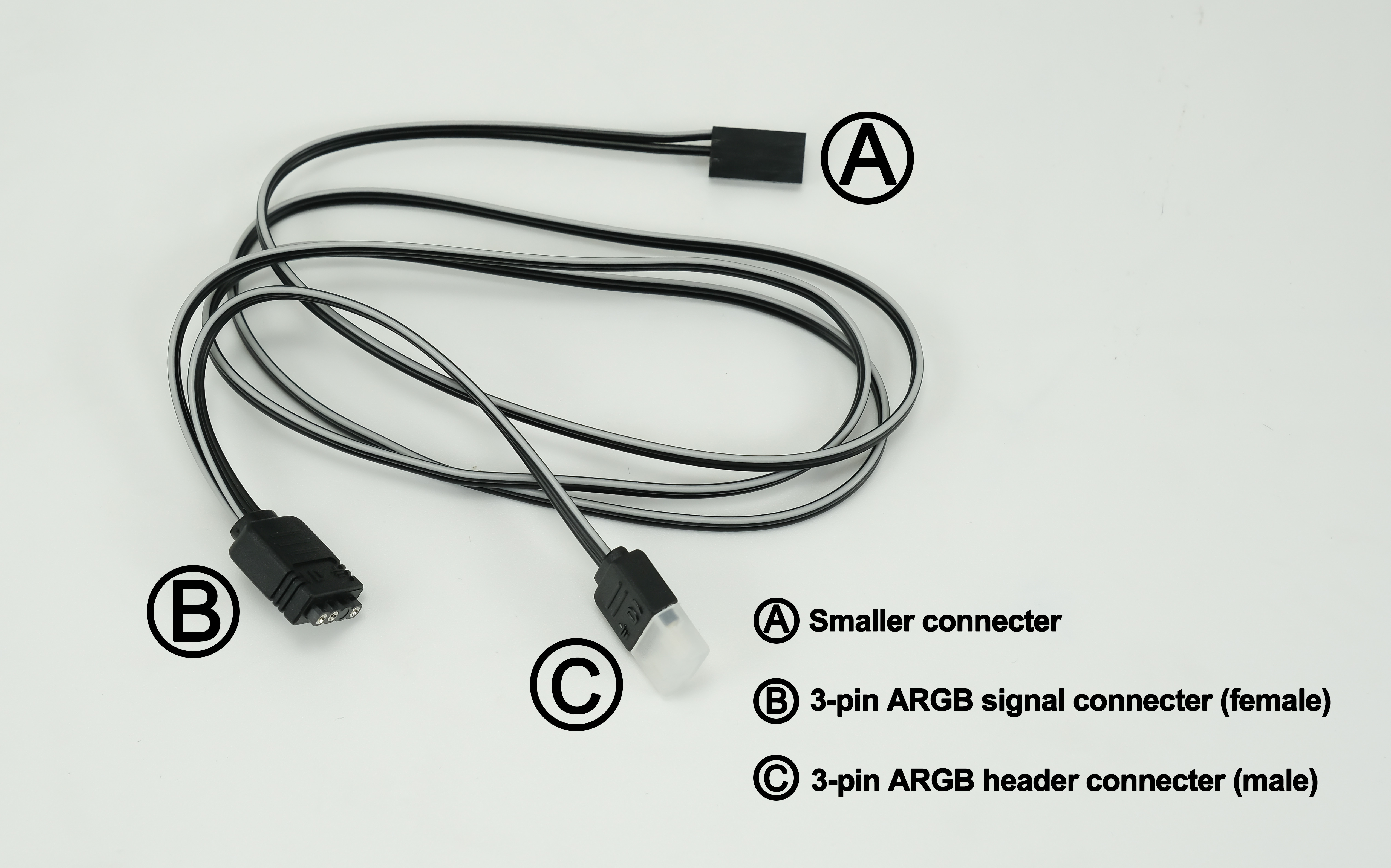

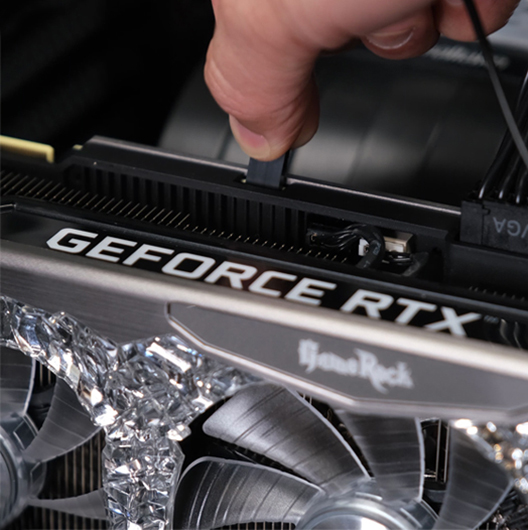

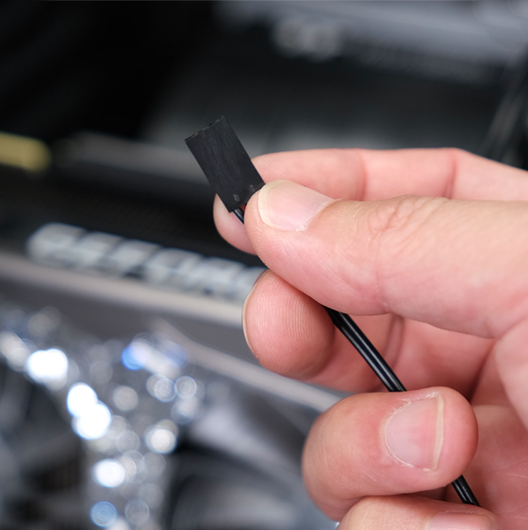

Connect the smaller end Ⓐ to GPU’s connector. The connector is non-directional, so you don’t need to worry about damaging the card with wrong connection.

STEP-02

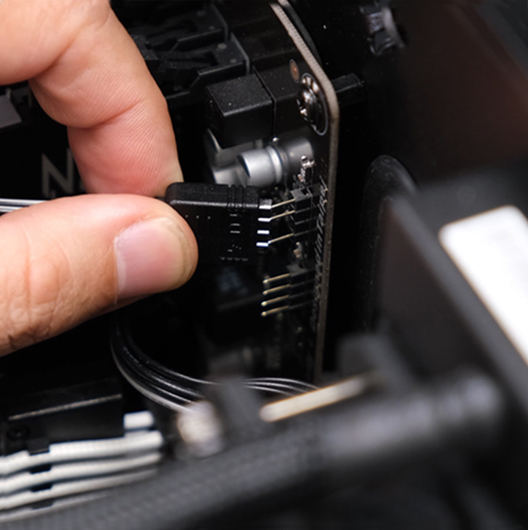

Connect Ⓑ (female) connector to the motherboard or other ARGB controller. NOTE: The ARGB strip supports 5V only (from the motherboard header or ARGB controller.) Incorrect connection may lead to damage of the strip.

STEP-03

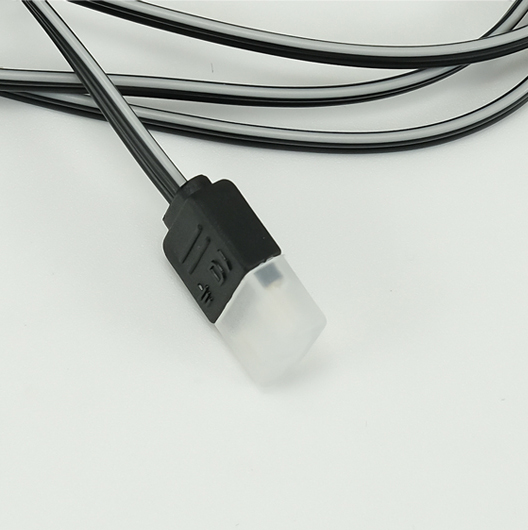

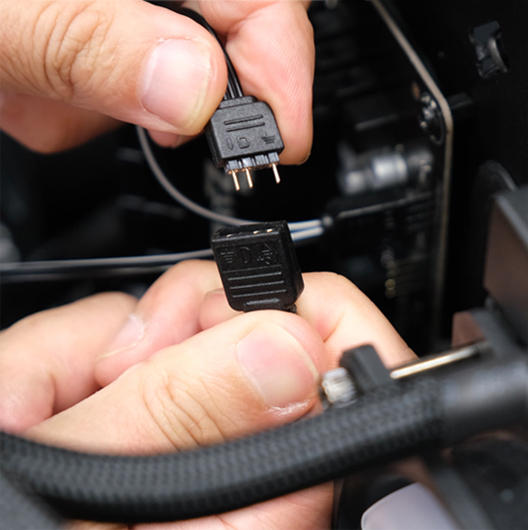

If you have other ARGB-supported devices, you can connect Ⓒ (male) connector to the ARGB strip.

This ARGB strip supports 5V only. Please follow below steps for installation.If any help needed, please contact our technical support team: support@palit.com

STEP-01

Connect the smaller end Ⓐ to GPU’s connector. The connector is non-directional, so you don’t need to worry about damaging the card with wrong connection.

STEP-02

Connect Ⓑ (female) connector to the motherboard or other ARGB controller. NOTE: The ARGB strip supports 5V only (from the motherboard header or ARGB controller.) Incorrect connection may lead to damage of the strip.

STEP-03

If you have other ARGB-supported devices, you can connect Ⓒ (male) connector to the ARGB strip.

STEP-04

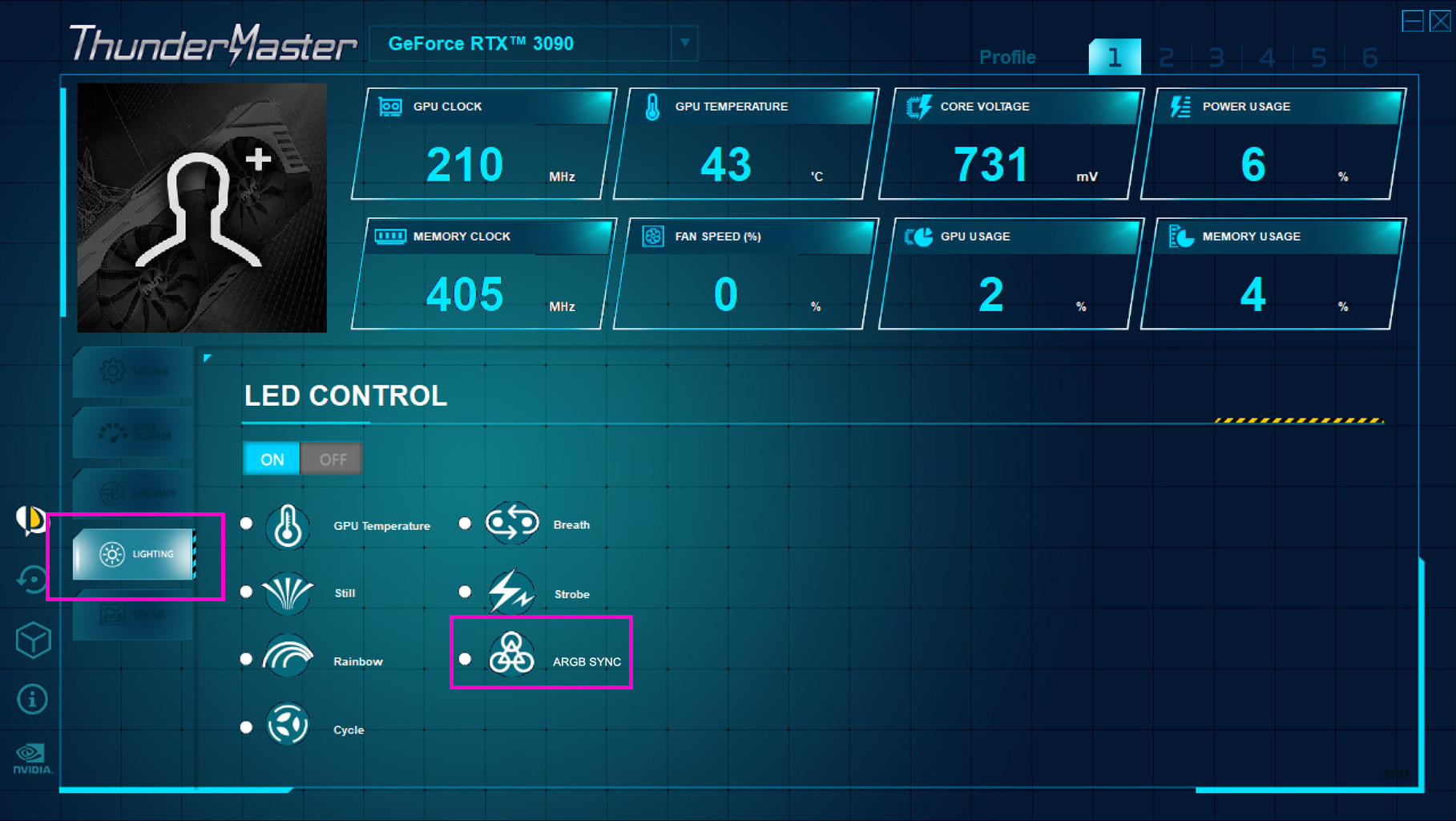

Please download the ThunderMaster and select “ARGB SYNC” under the “Lighting” tab. The software which controls the ARGB of PC devices will then be able to sync the lighting of PALIT graphics card.

Supported Models
